Step 10 Quickstart

Part of FlexViz Bridge

Connect a console

To drive the rig from a real desk, pair a FlexViz Bridge — the small application that speaks Art-Net/sACN on your network.

Click the console status in the header, or choose File › Console & live DMX…, and press Invite console. The invitation lasts a few minutes and covers this browser tab only. The Bridge must be signed in to your account.

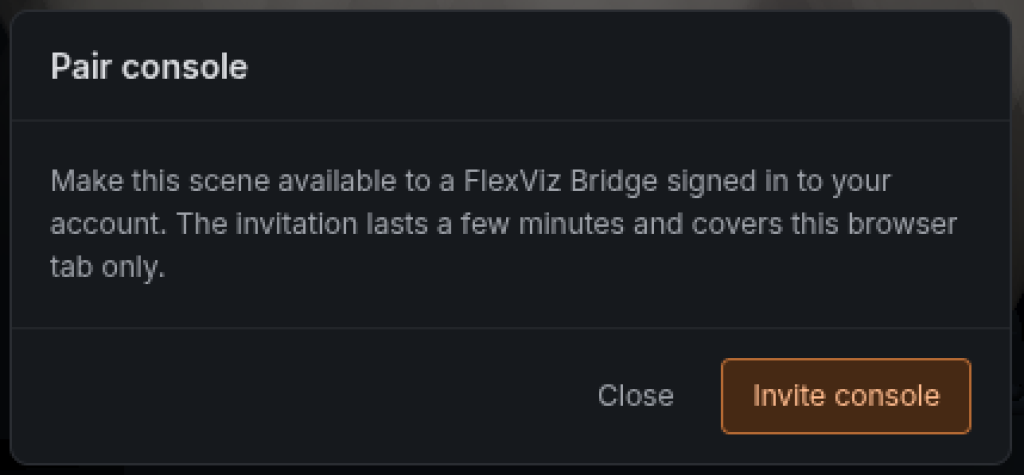

Pair console

The console status in the header tracks the state:

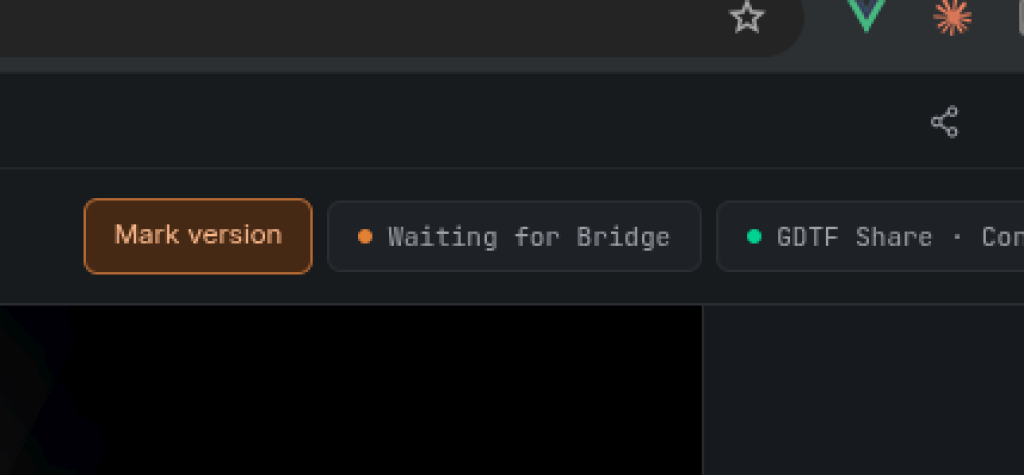

Waiting for Bridge

No console → Waiting for Bridge → a pairing code to confirm in the Bridge window → Live DMX when the desk is feeding the rig.

Bridge offline means the Bridge is not reporting in or reports a console error; check its window and connection. Waiting for console means the Bridge is paired and reachable, but no live DMX has arrived yet; check the console output and source approval in the Bridge.

  • 10
