Build a rig From an empty scene

Part of The renderer

Light it

Switch to the Focus workspace (key 3) and select fixtures. Control is on the right, the looks below the viewport.

Control

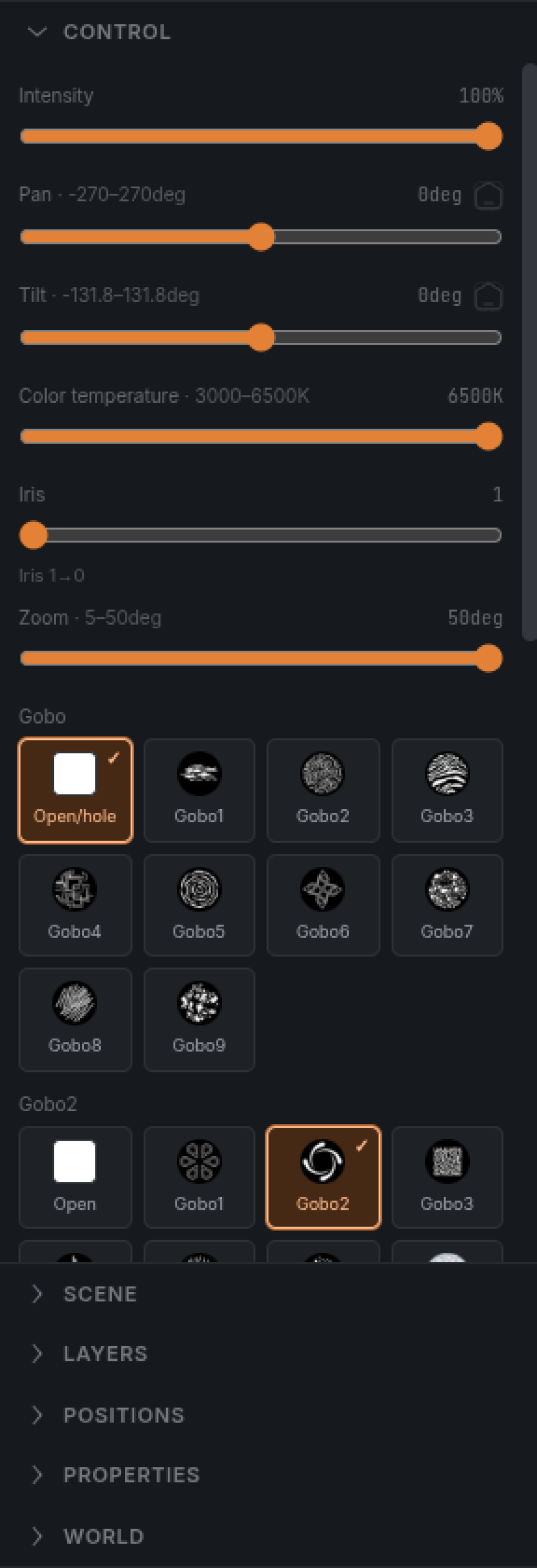

Intensity, pan, tilt, colour temperature, iris and zoom — each labelled with the fixture's own range, so Pan · −270…270deg is what this unit can really do, not a generic dial. Gobo wheels appear as thumbnail grids, one grid per wheel.

Intensity comes first when the fixture has a dimmer. A mode without one that has a single colour channel, such as a one-channel warm-white profile, dims on that channel and gets Intensity too. A mode that only mixes colours has no Intensity control; set the colours instead.

When a state is worth keeping, save it as a Look:

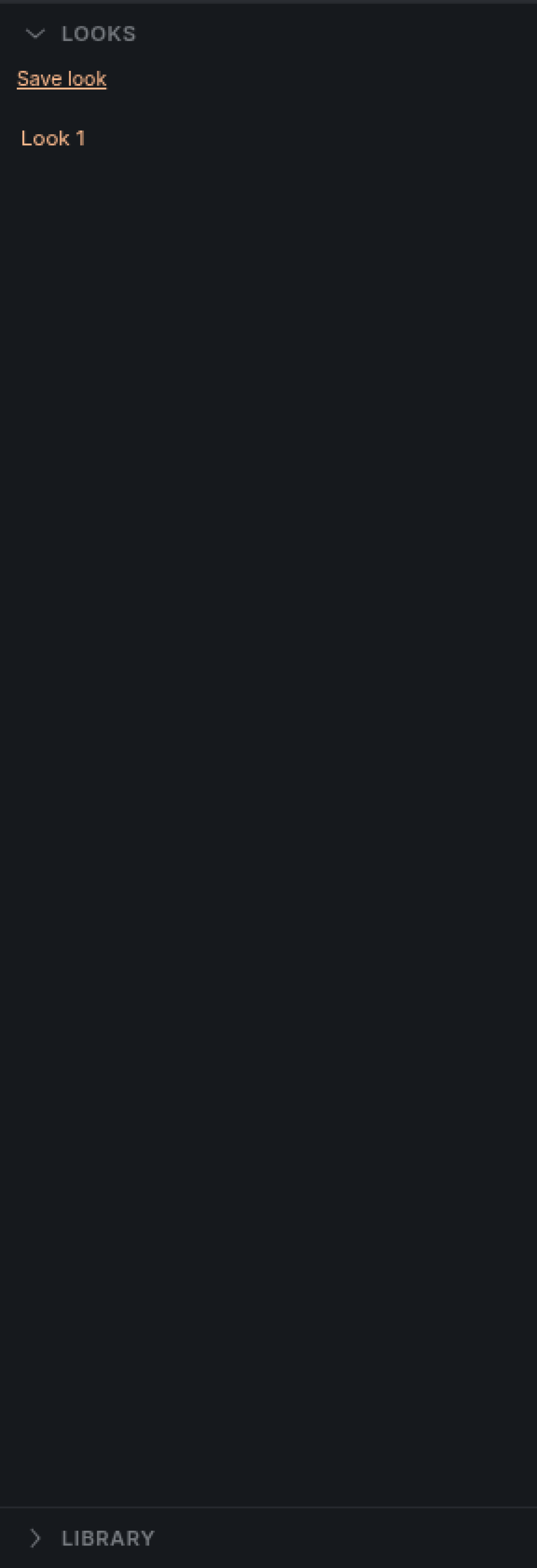

Looks

Looks are named states of the rig, recalled in one click. They are deliberately not a cue list — no fades, no follow, no tracking. They exist so a scene can be shown, reviewed and sold without a console attached.

Pointing fixtures: Aim at point

Setting pan and tilt by hand is fine for one unit and miserable for twelve. Aim at point does it by pointing instead:

  1. Select the fixtures you want to aim.

  2. Choose Aim at point (A) on the Focus shelf. It stays greyed out until something is selected.

  3. Click where they should point.

Aim at point works in both Plan and Live — one of the few planning functions that does. Aim in the plan when you are working to a drawing, aim in Live when you are working to what you see.

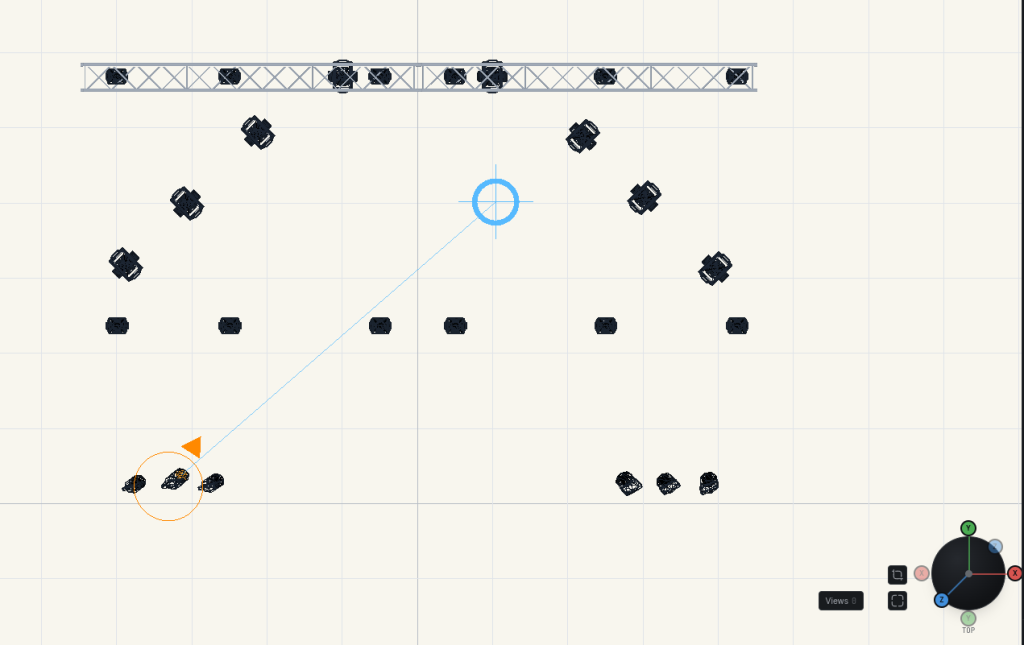

Aim at point in the plan view

While you aim, a ring marks the target and a line runs to it from every fixture that is pointing there. A line in the warning colour that stops short of the target is a fixture that cannot make the aim — out of arc, a scanner, or a mover locked out while a console is live. That is the whole report; there is no dialog.

In Plan this overlay is all the feedback there is: mover bodies do not turn in the plan and there are no beams to watch, so the lines are the only thing showing what the gesture did. In Live you get the same lines and the rig actually moving:

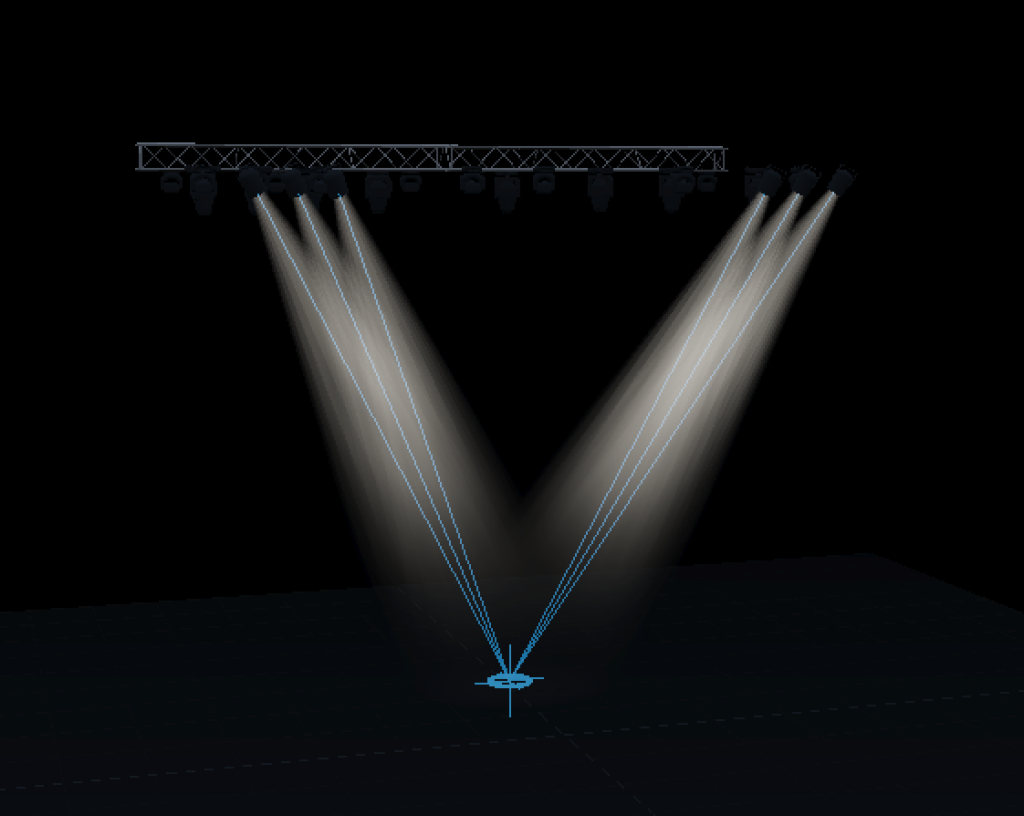

Four Sharpys aimed at one point in Live

While the tool is active, a click in the viewport is always an aim, never a selection. To pick different fixtures, go back to Select (Q) or use the Outliner.

With nothing selected, Properties shows World settings, marked This computer only — not saved with the show: working light (for orientation only; it casts no shadows, makes no beams and does not touch fixture output), the grid, venue size and spacing. Grid snap is the Snap button above the plan, or Snap to grid here.

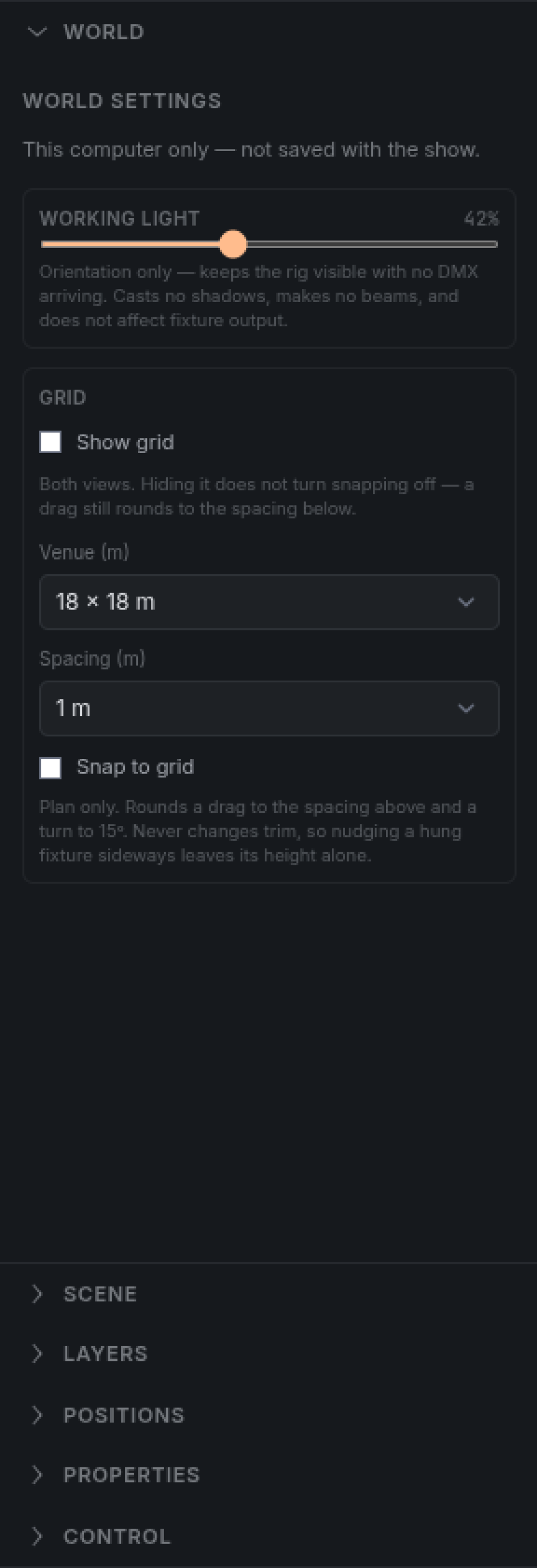

World settings
