Patch it

Most of this is already done. Every fixture you drop is patched as it lands: FlexViz takes the next free block big enough for that mode's footprint, filling gaps left by deleted fixtures rather than counting away from the end. A fixture is never split across the end of a universe — if it does not fit in the tail, it starts at 1 of the next one. It also gets a numbered name and the lowest unused rig number.

So you can hang a rig and have a working patch without touching an address. What follows is how to read it and how to take it over when the automatic answer is not the one you want.

The Patch workspace (key 2) is laid out for this. The Patch editor on the left is the patch list, Properties is on the right, and DMX Universe is below.

The Patch workspace

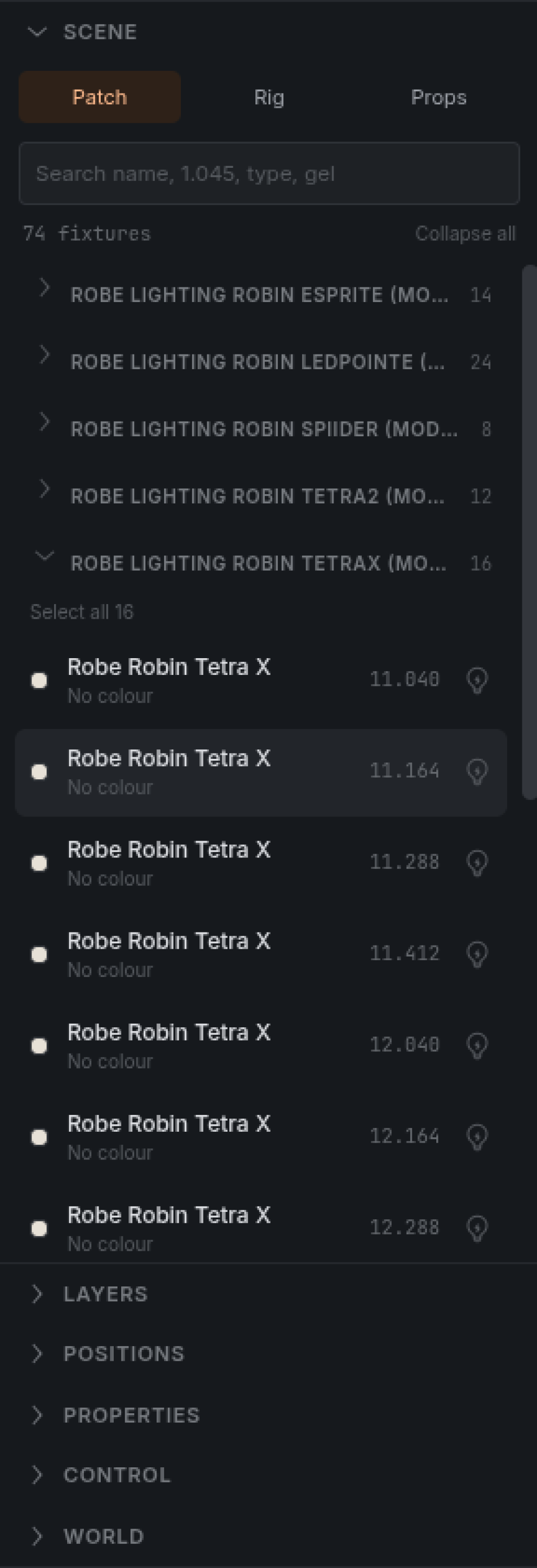

The Patch editor groups the fixtures by type, with the count on the right. Expand a type and you get every unit with its address, its colour, and a pin that shows it in the viewport. Select all 16 takes a whole type in one click. The search box takes a name, an address such as 1.045, a type or a gel.

DMX Universe shows one universe's 512 channels: who sits where, what is free, and in red, where two fixtures overlap. It follows the selection to its universe, and a click on a channel selects the fixture on it.

DMX Universe: the selected fixture in orange

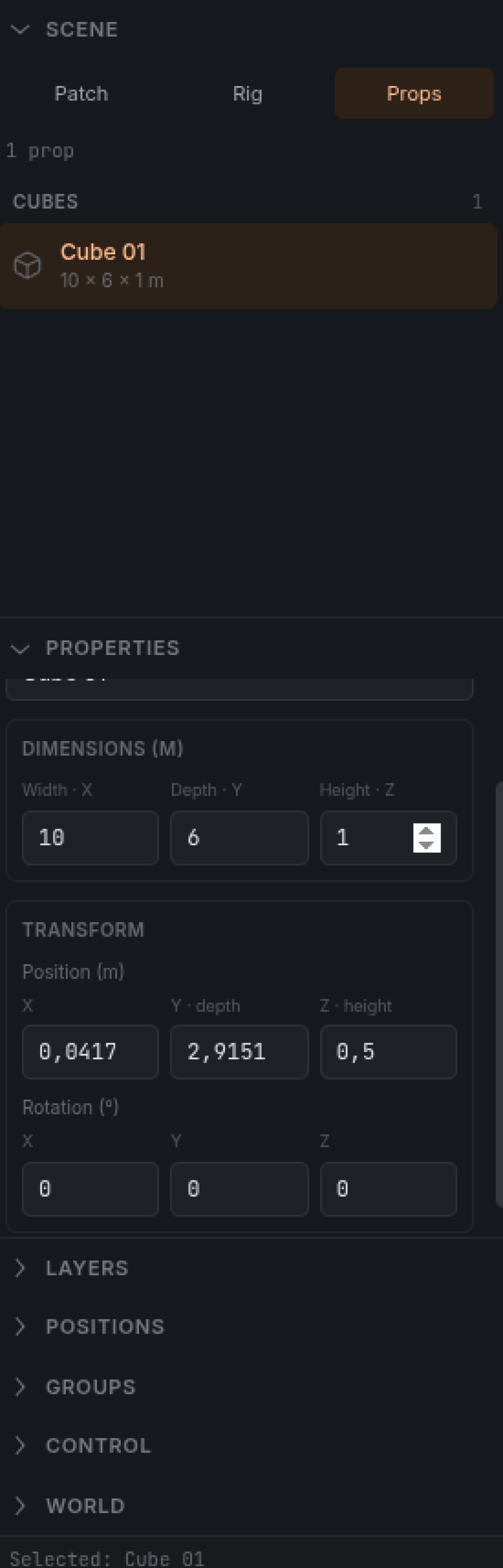

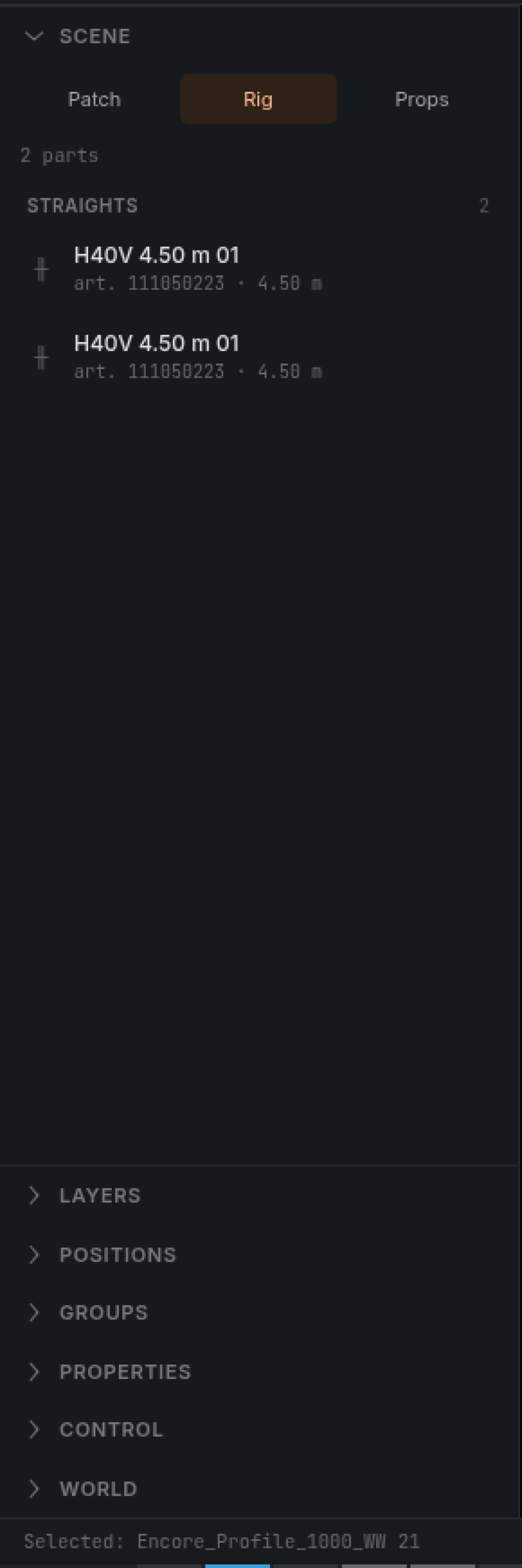

Truss and props have their own lists in Outliner › Objects, under Rig and Props. Rig lists every truss part with its article number and length, so the list doubles as what you order:

Outliner › Objects › Rig

To take a block of fixtures over by hand, select them and use Set address (A), or Edit › Repatch…. It walks the selection down the wire from an address you give, packing each fixture by its own footprint — twelve channels for the head, three for the PAR behind it — and shows you a preview of where everything lands and what it would collide with before anything moves. A fixture never straddles a universe here either: Continue into the next universe decides whether the run carries on at 1 of the next universe or stops.

Renumber (E) or Edit › Renumber… does the same for fixture numbers, and Edit › Number rig numbers the whole rig at once, in the order a plan is read. Numbering is deliberate and never automatic on a drag, so a plot you have printed, sent to a console or exported as MVR keeps matching the rig. More in Numbering the rig.

Fine detail lives in Properties:

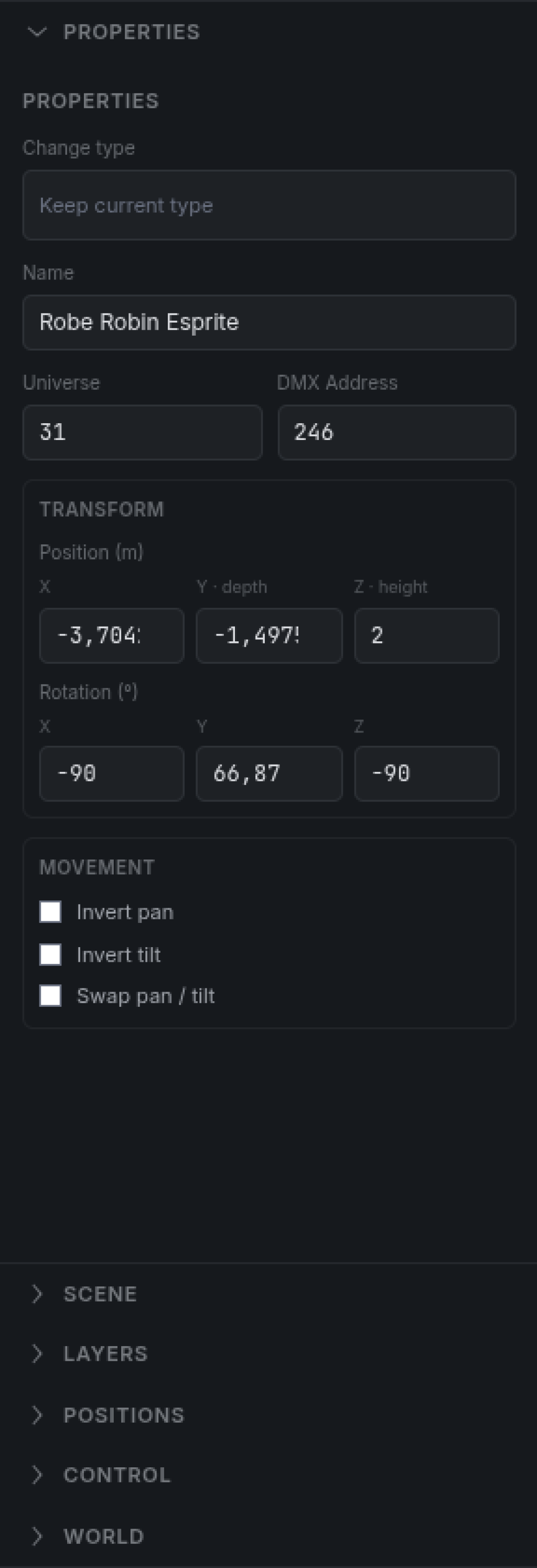

Properties for one fixture

Name, universe, DMX address, position in metres, rotation in degrees, and the movement flags — Invert pan, Invert tilt, Swap pan / tilt — for the units that are hung the wrong way up.
