Get fixtures into the scene

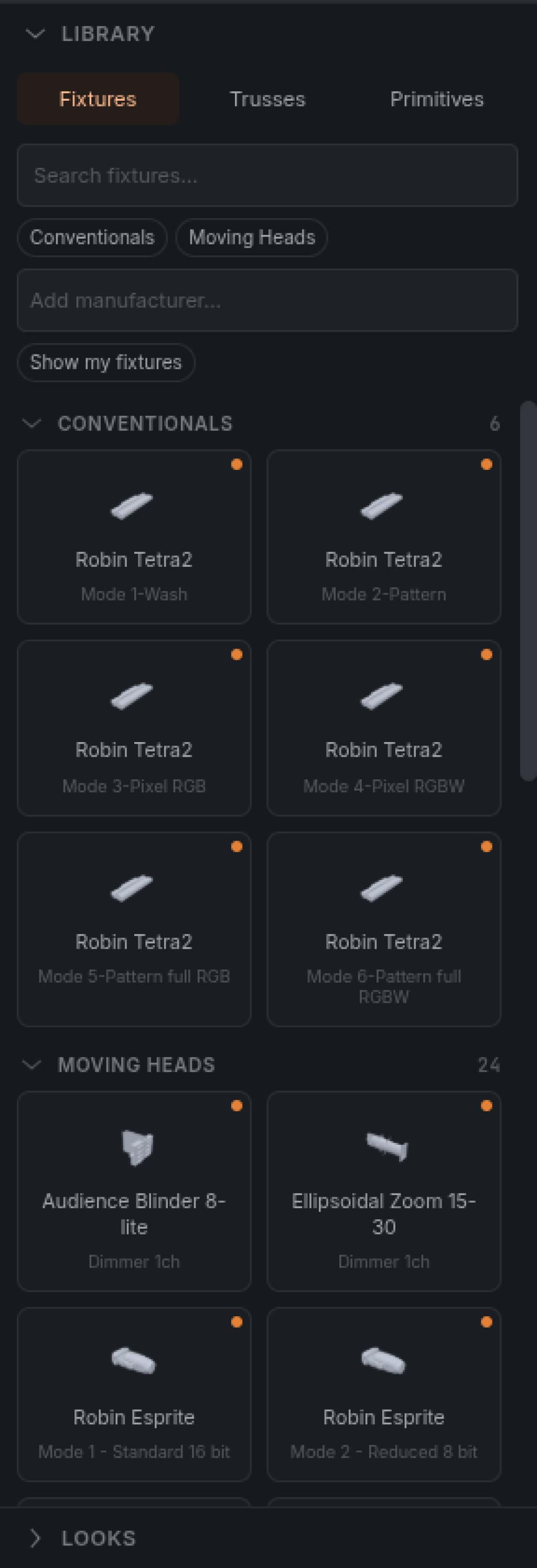

Work in the Rig workspace (key 1). The Library sits below the viewport; its first tab is Fixtures.
Search by name, filter by Conventionals / Moving Heads, add a manufacturer filter, choose a Source (GDTF or OFL), or press Show my fixtures to see only what you have imported. Each card is one mode of a fixture — Mode 1 · Wash, Mode 4 · Pixel RGBW — because the mode decides the channel count you are patching.
Click a card to add the fixture to the plan, or drag it into the viewport to put it where you want it. Right-click a card for Add multiple… and Show all modes of ….
If a fixture you need is not there, you have three ways in, all under File › Import: GDTF, OFL, and MVR (which brings a whole scene).
File › Import › Patch (CSV) is a different thing and worth being precise about: it takes MagicQ CSV only, and it imports the patch alone — addresses and universes, not the fixtures themselves. The fixtures have to exist in the scene already, from the library or from a GDTF/OFL/MVR import.

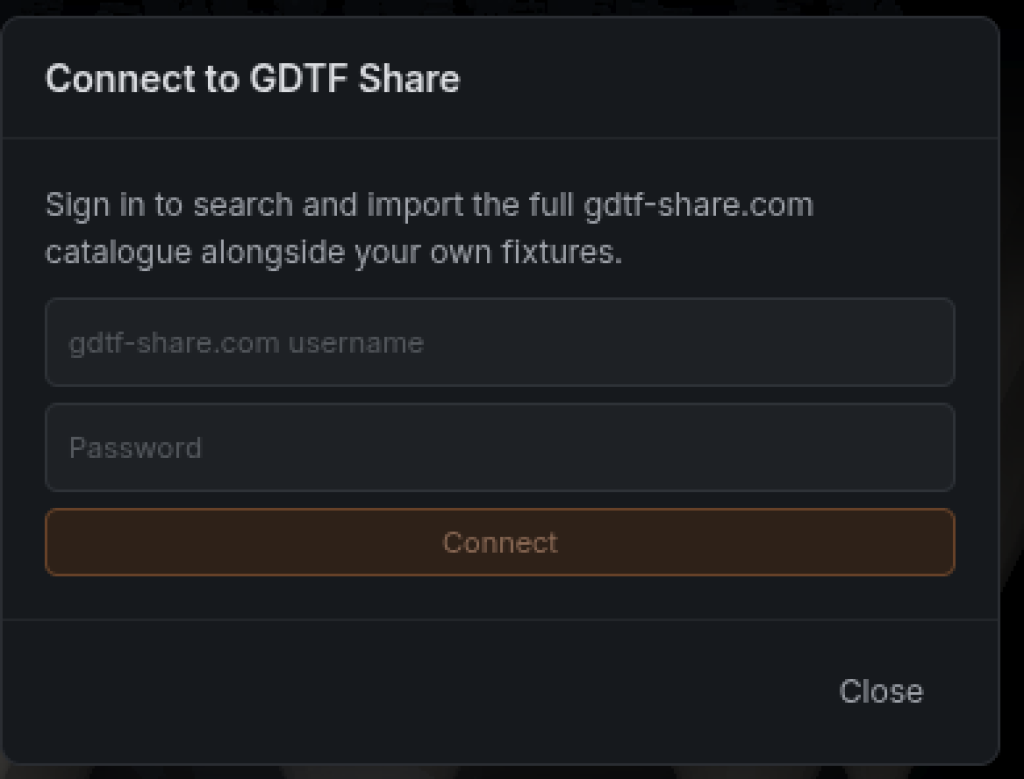

For anything you do not have a file for, connect to GDTF Share and search the full catalogue from inside FlexViz:

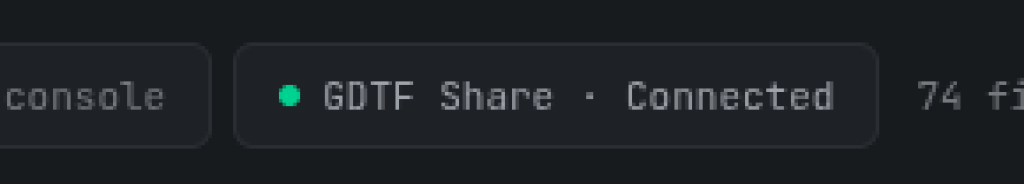

Sign in with your gdtf-share.com account. The header then shows the connection:
When FlexViz asks for a body
Fixtures from the Open Fixture Library carry no 3D model, and some GDTF files carry none FlexViz can draw. When you place one of those, FlexViz opens Choose fixture appearance and asks for a stand-in: a plain body of the right kind, so the fixture can be drawn and its beam placed. Its profile, modes and patch stay as they are.
A GDTF whose model could only partly be read offers a third choice: keep that partial body.
Remember this choice decides how far the answer reaches: These fixtures, This project or All my projects. Without it, FlexViz asks again for the next one. Suggest as FlexViz default sends the choice for review; it does not apply until someone at FlexViz approves it.
To change it later, select a fixture and use Change beside Appearance in Properties. The change applies to every fixture of that type in the scope you choose.
The demo project brings its choices with it, so it opens without asking.
Add several at once
To add several fixtures in one step, right-click a fixture card and choose Add multiple….
The dialog asks three things:
How many.
Where they go: in a row (Horizontal), a column (Vertical) or a Grid with as many columns as you set. Fixed spacing puts that many metres between neighbours; Spread over total distance fits the whole run, first to last, into that length.
How they are patched: Auto patch takes the next free addresses, as a single dropped fixture would. Start at runs them from a universe and address you type, each one straight after the last.
Horizontal and Vertical mean the drawing you are looking at, not the room. In the top plan, vertical runs upstage; in a front elevation it is height.
Draw the run with Alt. Drag a card into the plan, hold Alt where the run should start, move to where it should end, and release. The dialog opens on Along drag direction and spreads the fixtures over the line you drew, at any angle. If you hold Alt from the library onwards, the line starts where the drag entered the viewport.
A clash cannot be confirmed. If a Start at address would overlap anything already patched, the dialog says where, and Add stays greyed out. Two fixtures on one address are not a small problem: a MagicQ drops the entire patch of an MVR when it finds one, not just the pair.
Everything you add lands on the working layer (see Layers), arrives selected, and gets the next free names and numbers. One Undo takes the whole run away again.
