Part 2 — Panel reference

Highlight: find one fixture in the rig

Which one is Spot 7? The lamp button on its patch row holds it at full so you can see it on stage.

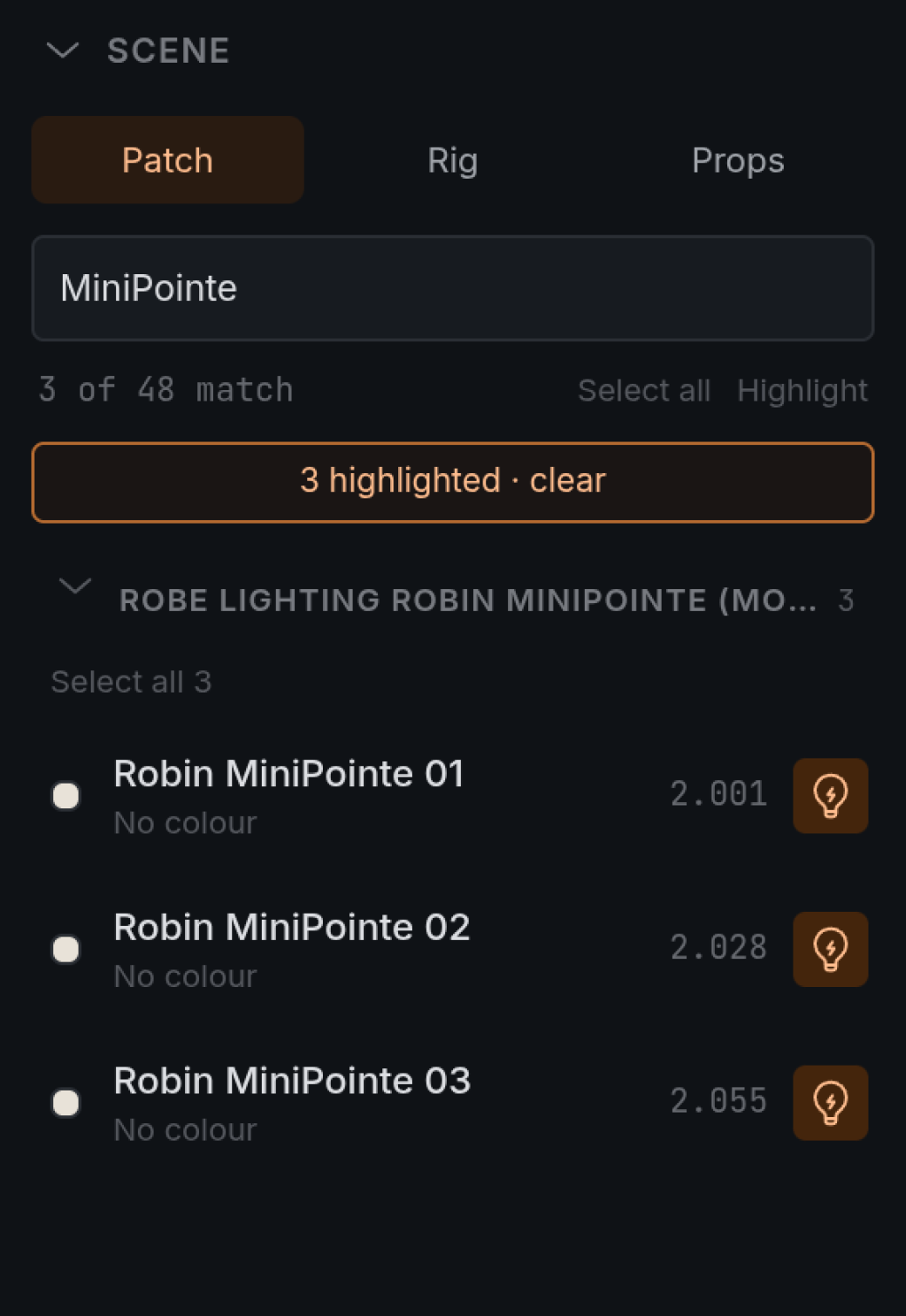

A search for MiniPointe, highlighted. The panel counts what is on

Every row in the Patch list has a lamp button on the right. Press it and that fixture goes to full intensity until you press it again.

  • It beats everything: the offline preview level, and a desk connected through the Bridge, including a shutter the desk holds closed. A fixture parked out is exactly the one you cannot find.

  • Several at once is normal. Search the patch list, then press Highlight beside the result count to light every match.

  • It stays on until you turn it off. Whenever any fixture is highlighted, the panel shows N highlighted with a way to clear them all, so three lights stuck at full do not look like a bug.

  • It is not saved and not shared. It is a question you ask right now, not a property of the scene. Colleagues and clients do not see it, and opening another scene clears it.

  • It is not selection. It survives clicking elsewhere, and selecting a fixture does not light it.

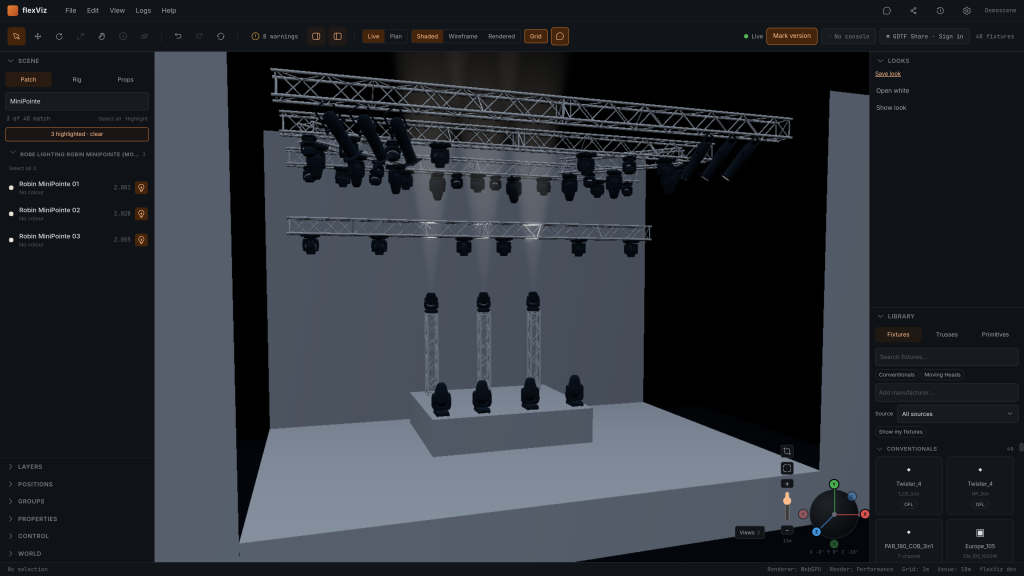

The rig at zero, three MiniPointes highlighted
  • Which one is Spot 7? The lamp button on its patch row holds it at full so you can see it on stage.
