Build a rig From an empty scene

Part of Plan mode

Build the rig

In the Rig workspace, switch the Library to Trusses.

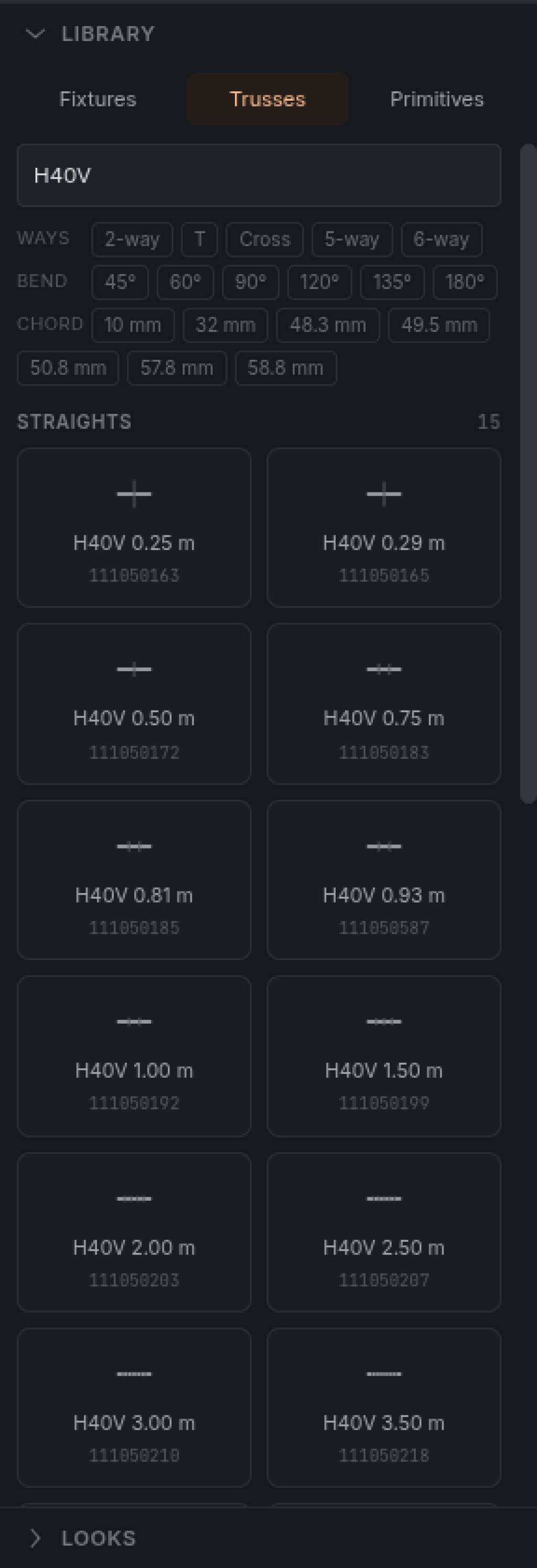

Library › Trusses

Filter by system (type it in the search box), by ways, bend angle and chord, then drag the straight or corner you need. Each piece carries its real part number, so what you draw is what you order.

Primitives — the third tab — are the plain shapes you need for risers, walls, screens and set pieces:

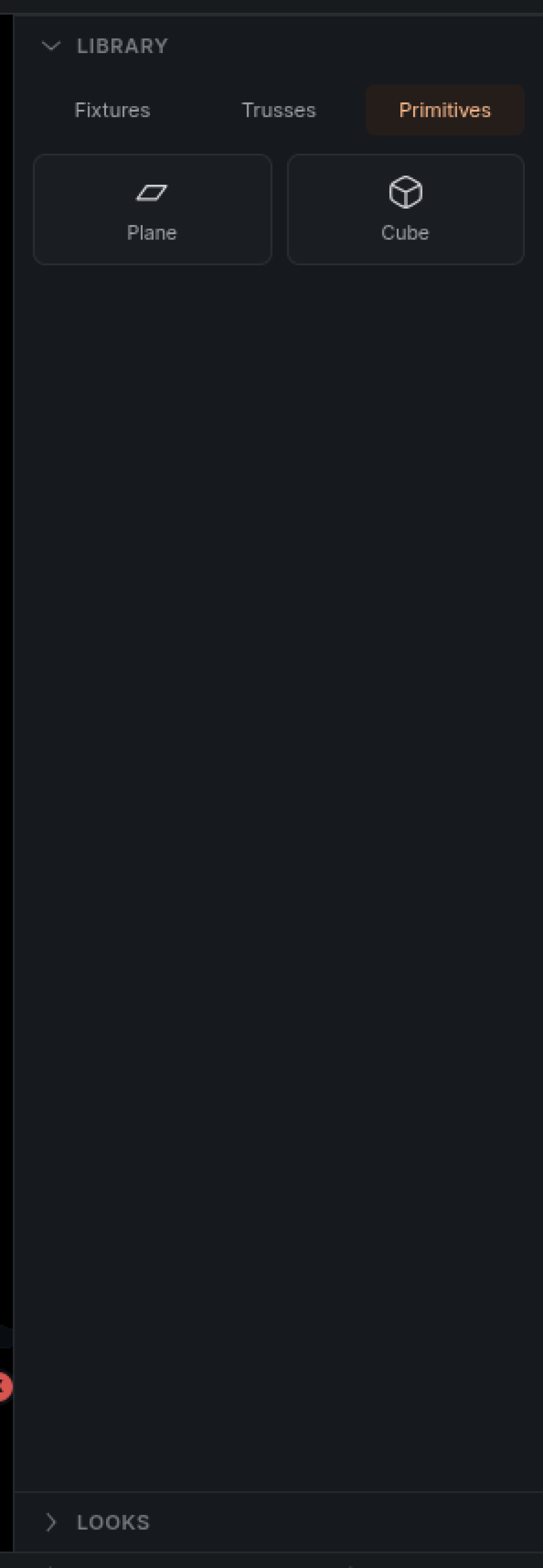

Library › Primitives

Drop a Plane or a Cube, then give it real dimensions in Properties. They are there to stand in for the room and the set, so beams land on something and the plan reads as a stage rather than fixtures in mid-air. Ramp, Screen and Backdrop sit on the same tab and are covered in Stage and scenery. Ready-made people and backline are on the Props tab.

The Rig workspace has the tools on its shelf: Move (G), Rotate (R) and Snap to truss (X), which couples truss ends and hangs fixtures on truss. In Plan, Snap in the bar above the view rounds a drag to the grid spacing and a turn to 15°. It never changes trim: nudging a hung fixture sideways leaves its height alone. What moves with what: What moves together.

The Rig tools, Snap to truss on

Reading the plan: which way a fixture faces

Select fixtures in Plan and each one gets a ring and an orange chevron:

Plan view with direction markers

The ring says this one is selected — drawn beside the body rather than on it, so it still reads at the zoom where the whole rig fits on screen, and on top of the truss the fixture hangs from. The chevron says which way it is turned, and "turned" means something different depending on the fixture:

  • A conventional is aimed, not turned. On a PAR, a profiler or a bar the front is the lens, so the chevron points where the light goes.

  • A moving head is turned, not aimed. Its head goes wherever the desk sends it, so the beam says nothing about how it was rigged. The chevron points the way the base was hung — where the display is and where the cable leaves.

If a fixture faces straight at you or straight away — a PAR hung aimed at the floor, seen from the top — the chevron degrades to a dot. There is no side of the symbol to put an arrow on, and a dot is the honest answer.
